P-80 Connecting the TV

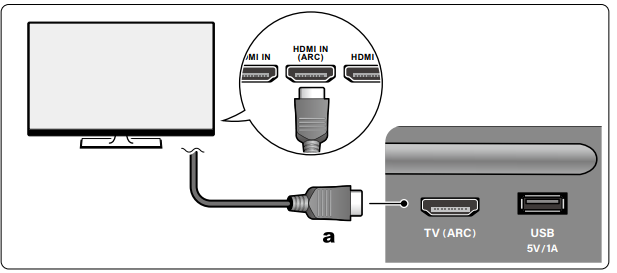

■ To ARC TV If the TV supports the ARC (Audio Return Channel) function(*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection.

a HDMI cable

Note

when the audio of the TV is not reproduced from the speakers connected to this unit, check that the audio output destination is set to an external device on the ARC setting of the TV. Also, check that the HDMI cable supports the ARC.

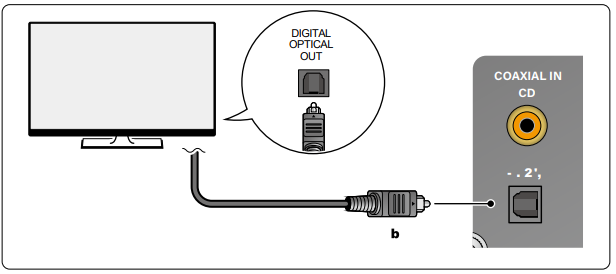

■ To Non-ARC TV When the TV does not support the ARC (Audio Return Channel) function(*), connect a digital optical cable.

b Digital optical cable

(*) The ARC function transmits audio signals of a TV via an HDMI cable to reproduce the audio of the TV on this unit. To check if the TV supports the ARC function, see the instruction manual of the TV or relevant documents.
