P-80 Web setup

Menu operations

You can make the settings for the network function of this unit using an Internet browser on a PC, smartphone, etc.

1. Start Onkyo Controller ( →p34) and check the IP address of this unit displayed on the screen.

2. Start the Internet browser on your PC, smartphone, etc. and enter the IP address of this unit in the URL field.

3. The screen for entering the user name and password is displayed. Enter the following then click "OK". User name: admin (fixed) Password: admin (default value)

• Input is required again if you close the browser.

4. Change the password.

• Take a note of the password so that you do not forget it. If you do forget it, reset the unit ( →p41) then log in again with the initial settings (admin).

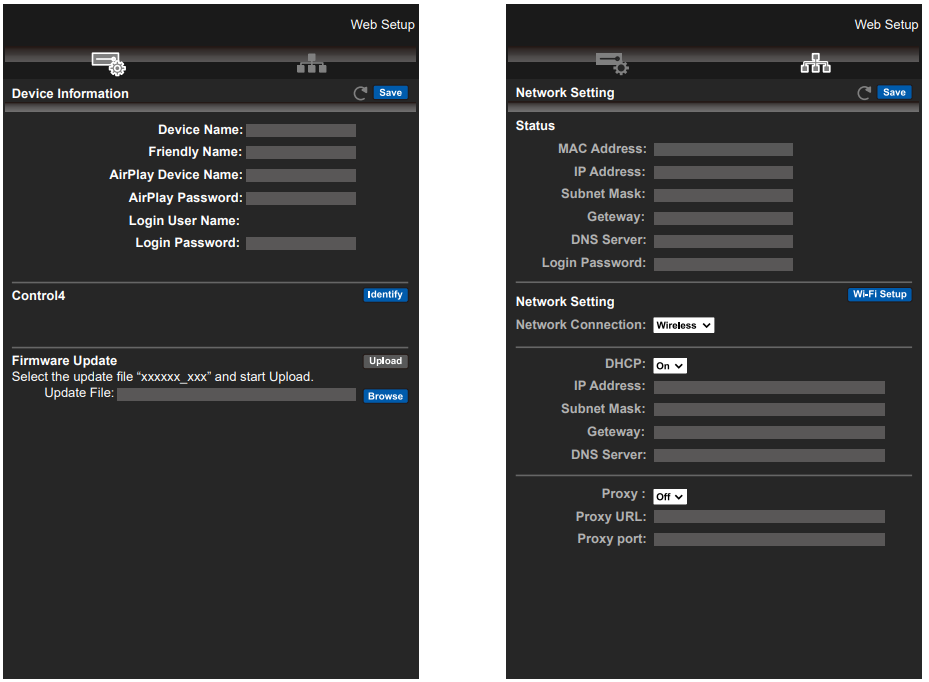

5. Information for the unit (Web Setup screen) is displayed in the internet browser.

6. After changing the settings, select "Save" to save the settings.

Device Information

You can change the Friendly Name or AirPlay Device Name, set an AirPlay Password, etc. Control4: This device does not support this feature.

Firmware Update: Select the firmware file you have downloaded to your PC so you can update this unit.

Network Setting Status: You can see information for the network such as the MAC address and IP address of this unit.

Network Connection: You can select a network connection method. If you select "Wireless", select an access point from "Wi-Fi Setup" to connect.

DHCP: You can change DHCP settings. If you select "Off", set "IP Address", "Subnet Mask", "Gateway" and "DNS Server" manually.

Proxy: Display and set the URL for the proxy server.
