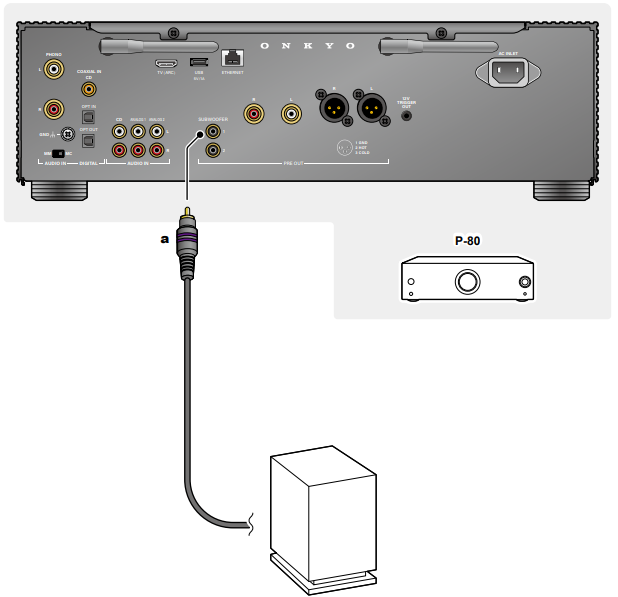

P-80 Connect the Subwoofer

Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

Note

Configure the setting to use the subwoofer. Download Onkyo Controller ( →p34) , select "Speaker Settings" - "Subwoofer" on the menu screen, and select "1ch" or "2ch".
