P-80 Network Connection

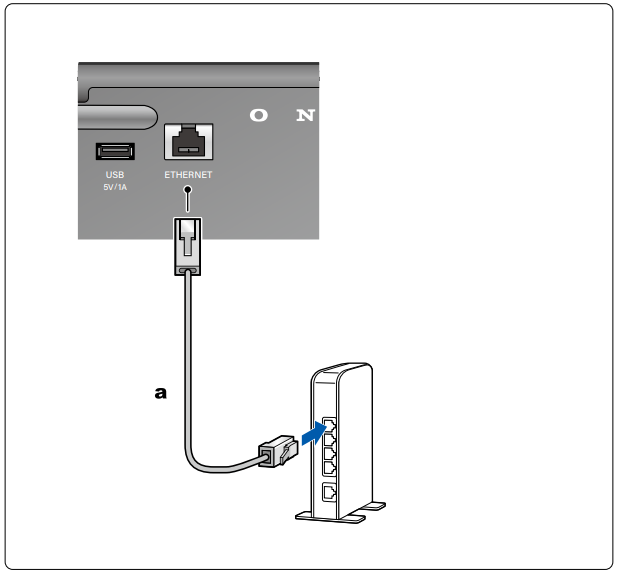

This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). Connecting to the network enables playback of an Internet radio, or various operations and settings using Onkyo Controller ( →p34). If connection is made by the wired LAN, connect the router and the ETHERNET jack with the Ethernet cable as shown in the illustration. If connection is made via Wi-Fi, stand the wireless antenna on the rear side, install Onkyo Controller on the mobile device, and configure the setting according to the onscreen instruction.

a Ethernet cable

Note

For security reasons, always connect via a router, etc., when connecting this unit to the Internet. Do not directly connect to the communication circuits (including public wireless LAN) of a telecommunications provider (mobile communications company, fixed-line communications company, Internet provider, etc.).
