P-80 Basic Operations

Turning the power on

1. Press ON/STANDBY on the remote controller to turn on the power of the unit.

You can also turn on the power of the unit with the following operations:

 – Pressing ON/STANDBY on the main unit.

 – Using the Onkyo Controller ( →p34)

Selecting a source to play

 1. Press an input selector button on the remote controller to select a source.

You can also select a source to play with the following operations:

– Turn the selector knob of the main unit.

 – Using the Onkyo Controller ( →p34)

Adjusting the volume

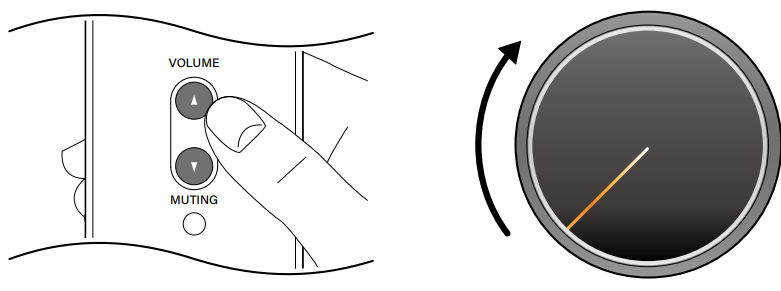

1. Press the VOLUME buttons on the remote controller to adjust the volume.

You can also adjust the volume with the following operations:

– Using the VOLUME dial on the main unit

– Using the Onkyo Controller ( →p34)

Mute

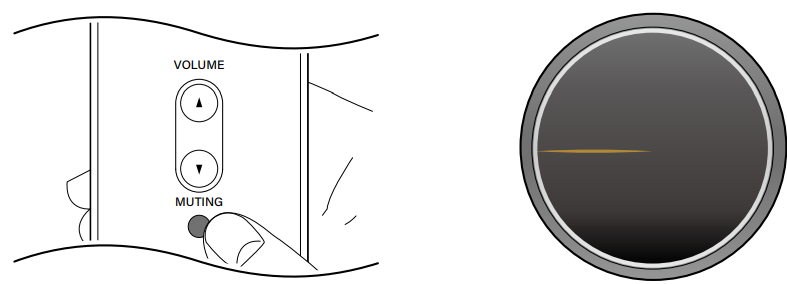

1. To temporarily turn off the sound, press the MUTING button. Press again to cancel.

      ・In the muting state, the volume indicator slowly blinks.

You can also adjust the volume with the following operations:

 – Using the Onkyo Controller ( →p34)

Adjusting the Bass, Treble and Balance

You can adjust the bass, treble and left/right output balance respectively.

TREBLE: Enhance or moderate the high pitched range.

BASS: Enhance or moderate the low pitched range.

BALANCE: Adjust the balance of the sounds output from the left and right speakers.

     ・When the DIRECT function ( →p21) is turned on, "TREBLE" and "BASS" are disabled.

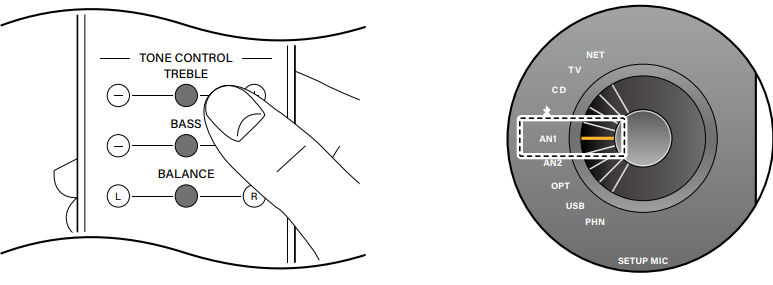

1. Press the TONE CONTROL button ("TREBLE" or "BASS" or "BALANCE") of the remote controller once.

   ・When the adjustment is made for the first time, the indicator of "AN 1" as the point        of origin (±0) blinks.

2. Press the "＋/－" button or "L/R" button to adjust the level.

    The level can be adjusted in 10 stages. TREBLE and BASS can be adjusted up to +10       or -10. BALANCE can be adjusted up to +10 on the R side, or +10 on the L side.               When the level adjustment reaches the upper limit, all displayed indicators blink.

TREBLE, BASS, and BALANCE can also be set using the following operation.

– Using the Onkyo Control Plus ( →p34)

Using the Direct Function

When the DIRECT function is turned on, the sound does not pass through the Tone Control circuit that adjusts treble and bass, but passes through the shortest route in favor of sound quality. The output balance between right and left can be adjusted since it uses a method that does not affect the sound quality.
