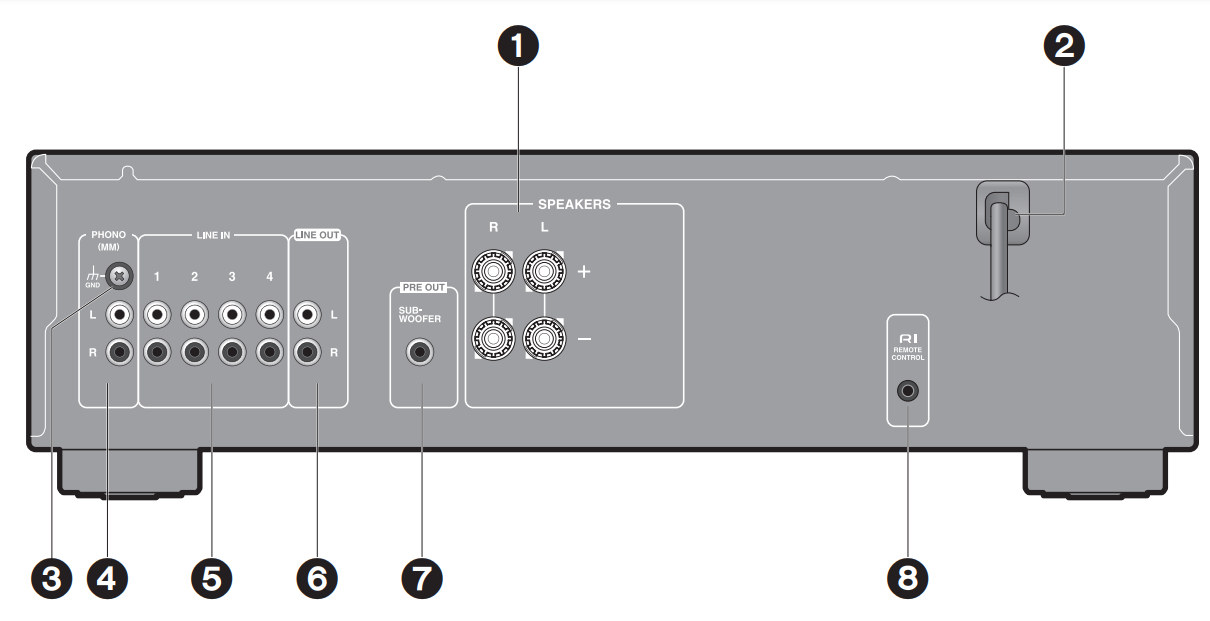

SPEAKERS terminals: Connect speakers with speaker cables.
North American models are banana plug ready. Use plugs with a diameter of 1/8" (4 mm).
Not all models support connection with Y plugs.
Power cord
GND terminal: The ground wire of the turntable is connected.
PHONO MM jacks: Use an Analog audio cable to connect a Turntable that uses an MM type cartridge.
LINE IN jacks: Input audio signals from a playback device with an analog audio cable.
LINE OUT jacks: Use an Analog audio cable to output audio signals to recording equipment, such as a cassette tape deck. To select the input source for recording, use the INPUT dial on this unit or use the remote controller.
SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.
RI REMOTE CONTROL jack: This jack is for linking when you connect an Onkyo CD player, tuner, network audio player, or RI dock that has an RI (“Remote Interactive”) jack.
