TX-NR7100 - Connecting a Power Amplifier (For European, Australian and Asian models)

You can connect a power amplifier to the unit and use the unit as a pre-amplifier in order to produce a large volume that cannot be output with the unit only.  Connect the front speakers to the power amplifier. For details, refer to the power amplifier's instruction manual.

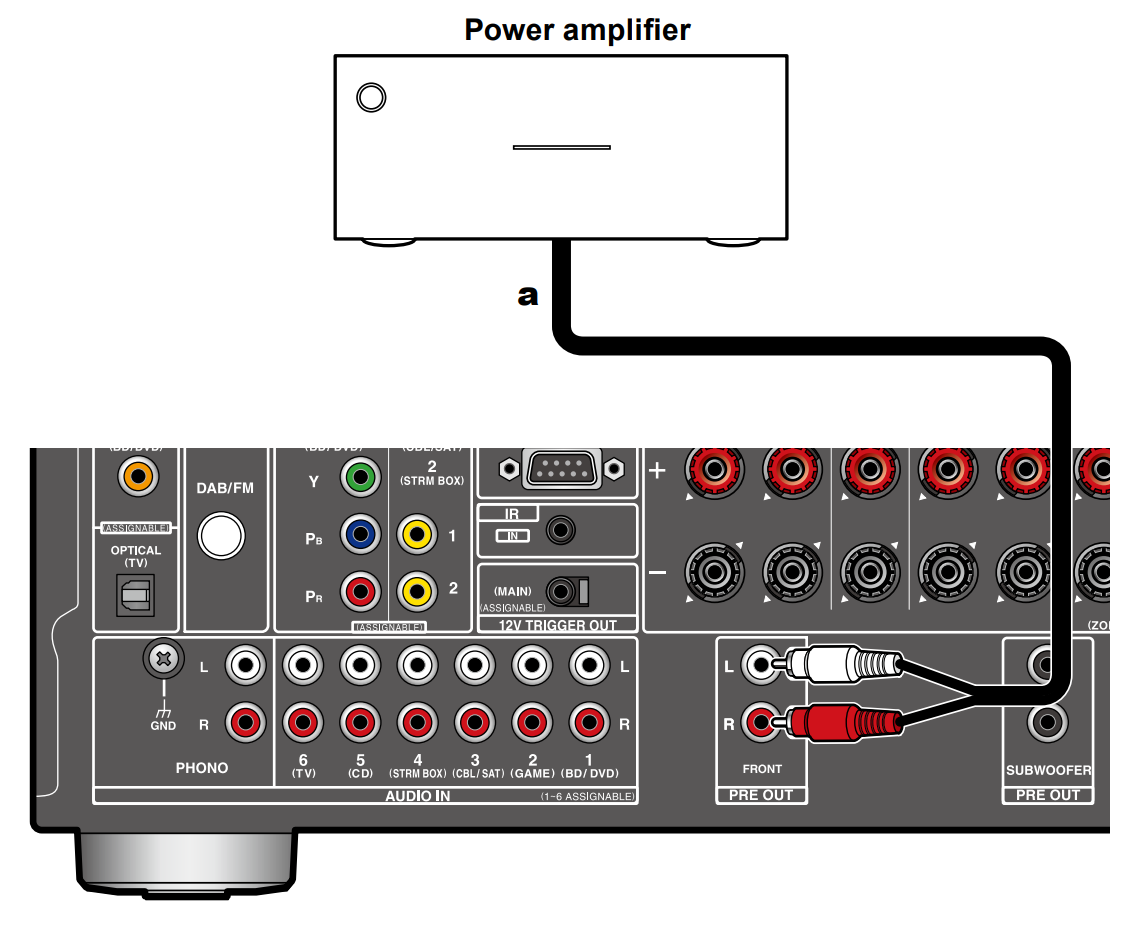

• Use the PRE OUT FRONT jacks for connection as show on the left.

Setup

• Set "2. Speaker" - "Configuration" - "Speaker Channels" according to the number of channels of the connected speakers.
