TX-NR7100 - Connecting an Audio Component

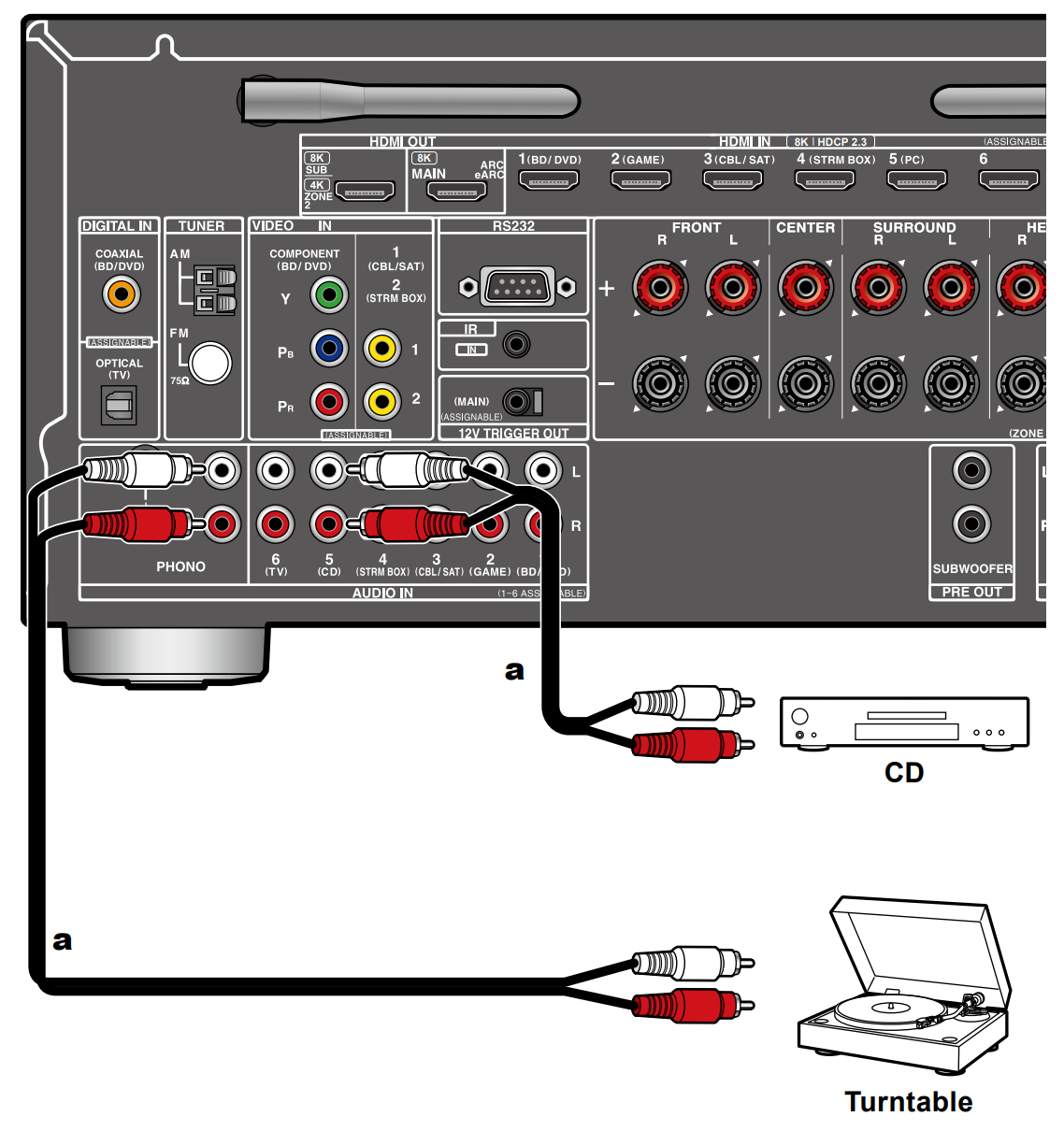

This is a connection example of an audio component. Connect a CD player using an analog audio cable.  You can also connect a turntable that has an MMtype cartridge to the PHONO jack.

• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO IN jacks other than the PHONO jack. Further, if the turntable uses an MC type cartridge, install a phono equalizer compatible with the MC type cartridge between the unit and the turntable, and then connect it to any of the AUDIO IN jacks other than the PHONO jack.
