TX-NR7100 - 12V Trigger Out Jack

When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD player to this unit, the device can be turned on or set to standby by
interlocking the operation on this unit. When any input is selected, this unit outputs a maximum of 12 V/100 mA control signal from the 12V TRIGGER OUT
jack, and controls the power link operation of the external device.

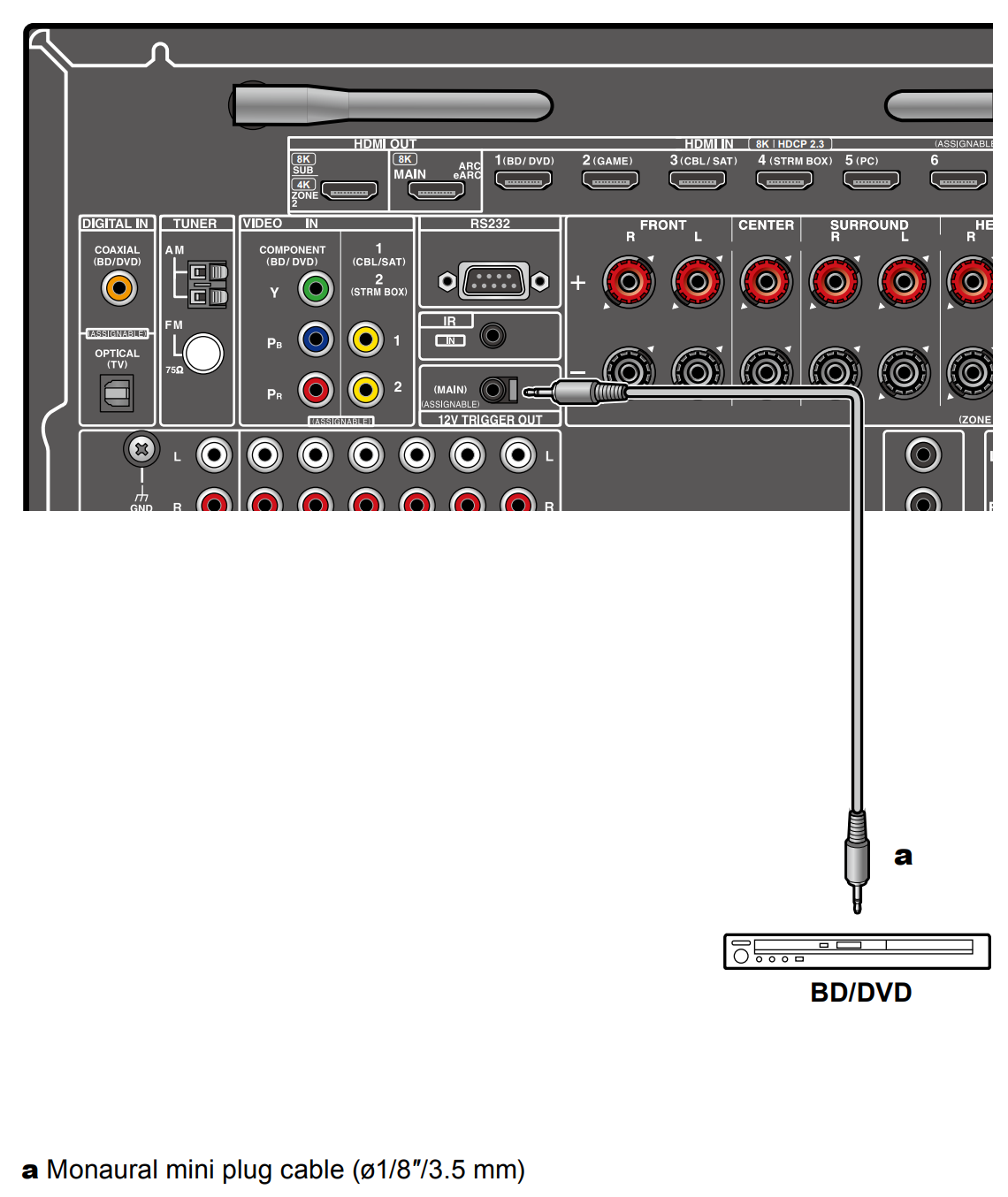

• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without resistance. Do not use a stereo mini plug cable.

Setup

• Settings are required to output control signals from the 12 V TRIGGER OUT jack. Press the button on the remote controller, select the input desired for
  "5.Hardware" - "12V Trigger", and set the output destination for the control signal.
