TX-NR6100 - Bluetooth
You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device through the speakers connected to this unit. It is also possible to transmit the audio from this unit to BLUETOOTH enabled headphones, wireless speakers, etc.
Playing audio from BLUETOOTH wireless technology enabled devices with this unit
Perform the following procedure when this unit is on.
Pairing
- When you press the BLUETOOTH button, "Now Pairing..." appears on the display, and the pairing mode is enabled.
- Enable (turn on) the BLUETOOTH function of the BLUETOOTH enabled device, and then select this unit from among the devices displayed. If a password is requested, enter "0000".
- This unit is displayed as "Onkyo TX-NR6100 XXXXXX". This display can be changed using the Friendly Name function or Onkyo Controller (available on iOS or Android™).
- To connect another BLUETOOTH enabled device, press and hold the button at least 5 seconds, and then perform step 2. This unit can store the pairing information of up to 8 paired devices.
- The coverage area is approx. 48´/15 m. Note that connection is not always guaranteed with all BLUETOOTH enabled devices.
Playing Back
- Perform the connection procedure on the BLUETOOTH enabled device.
- Playing the music file. The input on this unit automatically switches to "BLUETOOTH". Turn up the volume of the BLUETOOTH enabled device to an appropriate level.
- Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH enabled device.

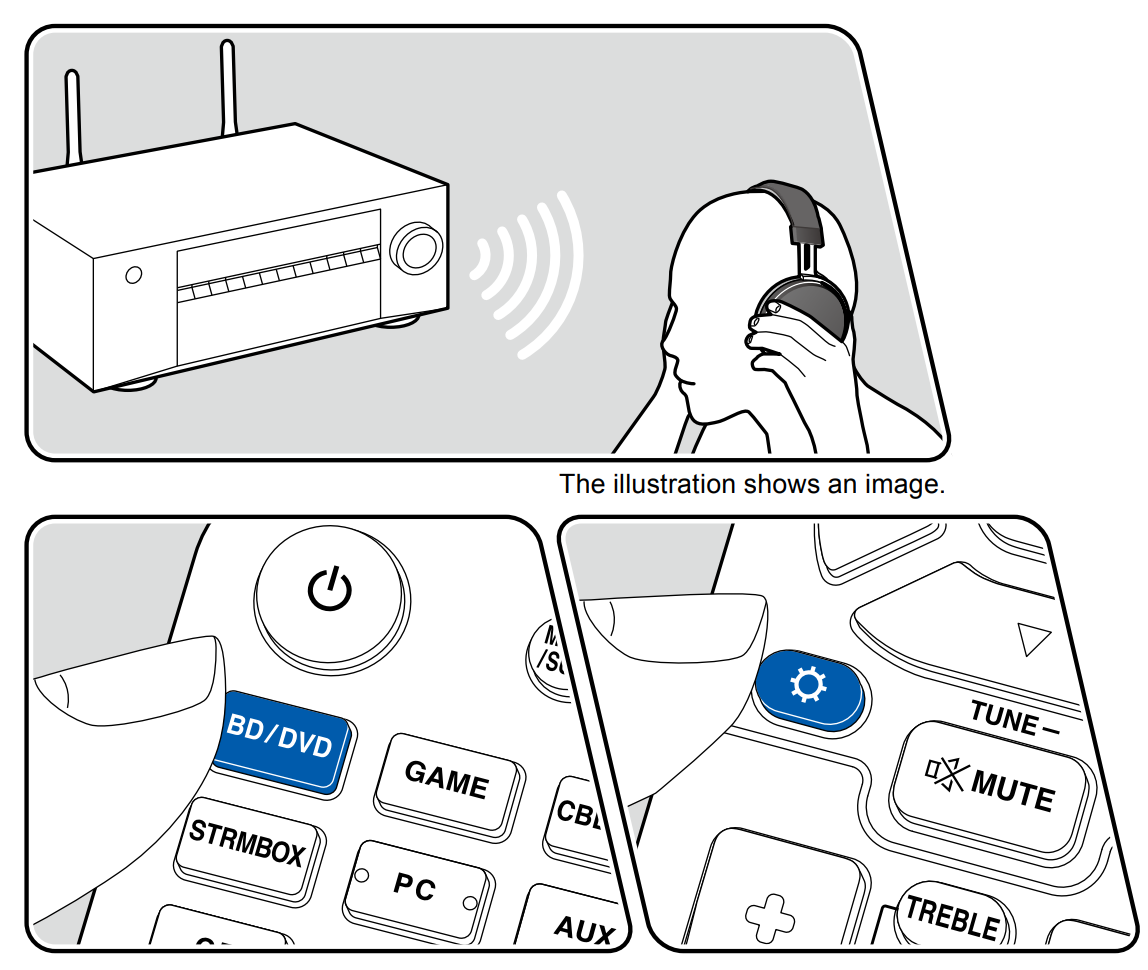

Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices
Pairing
- Press the input selector you want to play.
-Select a source other than "BLUETOOTH". This function does not work if you select "BLUETOOTH". - Press the button on the remote controller, select "5. Hardware" - "Bluetooth" - "Bluetooth Transmitter", and press the ENTER button.
- Select either "On (Tx)" or "On (Main + Tx)" in "Bluetooth Transmitter".
If you select "On (Tx)", playback is from the Bluetooth wireless technology enabled device only, and if you select "On (Main + Tx)", playback is from both the Bluetooth wireless technology enabled device and the main unit. - In "Search Devices", press ENTER.
-The search starts for BLUETOOTH wireless technology enabled devices that are able to receive, then a list of relevant devices is displayed. - Select the device you want to output the audio from, and when you press ENTER the message "Now Pairing…" is displayed and the two are paired.
-Depending on the BLUETOOTH wireless technology enabled device, you may need to pair manually. If the device name does not appear in the list, check the settings of the BLUETOOTH wireless technology enabled device.
Playback
- Do the play operations on the AV component connected to this unit. Do the
play operations on this unit when the input is TUNER or NET. You cannot adjust the volume of the BLUETOOTH wireless technology enabled device on this unit. Adjust on the connected BLUETOOTH wireless technology enabled device.
- You cannot transmit audio to multiple BLUETOOTH wireless technology enabled devices from this unit.
- Audio is also output from the speakers connected to this unit.
- The coverage area is approx. 48´/15 m. Note that connection is not always guaranteed with all BLUETOOTH enabled devices.
- When "Bluetooth Transmitter" is "On" and in the following cases, when this unit detects a paired BLUETOOTH wireless technology enabled device, it will automatically reconnect with that device.
– When the power is turned on again after the unit is switched to standby
– While other than "BLUETOOTH" is selected
– When the "NET" input is selected and there is audio output from a network
service/content (some services excluded)
When not using this function, select "Off" in "Bluetooth Transmitter" to cancel the connection. Also disconnect on the receiving device (if disconnection is possible on the receiving device). - Audio cannot be output from a BLUETOOTH wireless technology enabled device in the following cases: – When the audio file is DSD format
– When playing audio from one of the following network services: Chromecast built-in, Amazon Music, Amazon Alexa, AirPlay, DTS Play-Fi - Sound quality adjustments and listening modes of this unit cannot be applied
to the output audio.
