TX-NR6100 - Setup Menu - Input / Output Assign
TV Out / OSD
Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.
HDMI Out
Default Value: MAIN

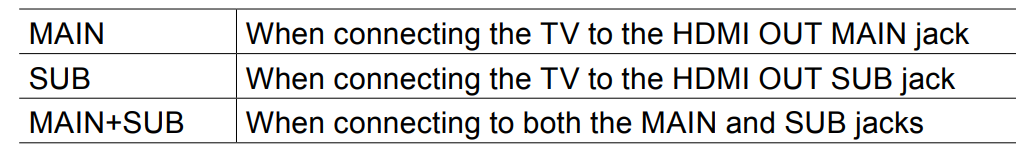

Select the HDMI jack to be connected with the TV.
- If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.
Dolby Vision
Default Value: MAIN

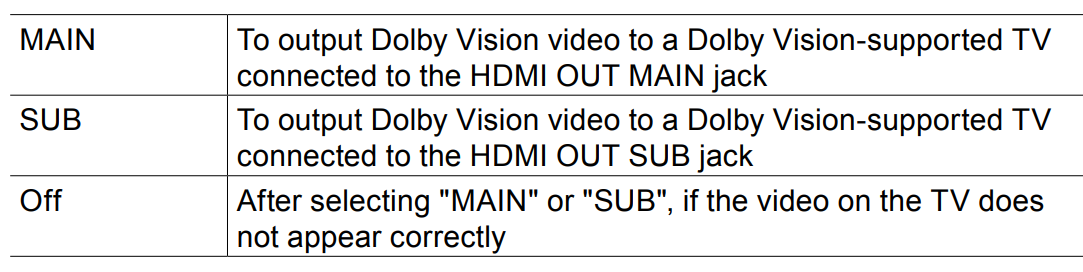

To output Dolby Vision video from the player to a TV that supports Dolby Vision, select either the HDMI OUT MAIN jack or HDMI OUT SUB jack to which the Dolby Vision-supported TV is connected. This setting is only necessary if you have set "HDMI Out" to "MAIN+SUB" and you have connected a TV to both the
MAIN and SUB jacks.
Upscaling
Default Value: Off
When a TV supporting 4K is used, video signals input with 1080p can be automatically output with 4K.
- If the TV does not support the 4K resolution with the same frequency as the frequency of HDMI input video signals, upscaling to 4K is not correctly performed. Check the frequency of 4K resolution supported by the TV, and change the resolution of the video signals input from the AV component.
Super Resolution
Default Value: 2
HDMI 4K/8K Signal Format
Default Value: 4K Standard

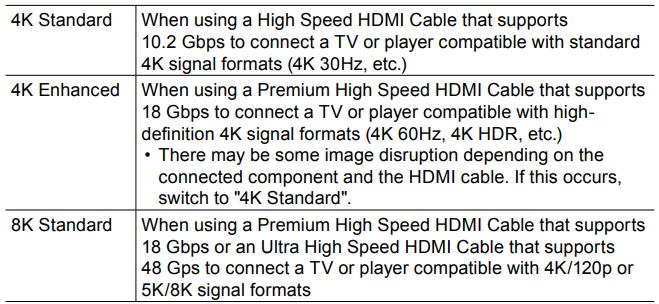

Set the 4K/8K signal format input and output by this unit. Set to suit the TV or player connected.
- The corresponding resolution is different depending on the HDMI jack connected.
Zone 2 HDMI
Default Value: Not use

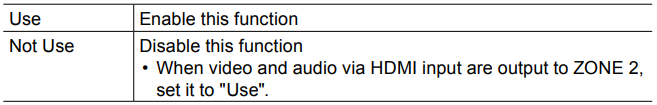

Make the setting when you output to the Zone 2 TV connected to the HDMI OUT SUB/ZONE 2 jack.
OSD Language
Default Value: English
Select the on-screen display language from the following.
North American models - English, German, French, Spanish, Italian, Dutch, Swedish
European, Australian, Asian and Taiwanese models - English, German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese
Impose OSD
Default Value: On

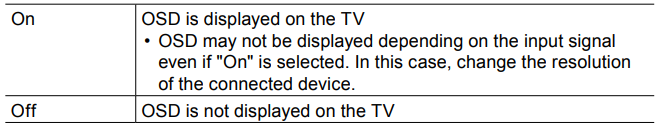

Set whether or not to display information such as volume adjustment or switching of input on the TV screen.
Mini Player OSD
Default Value: Always on
You can display on the TV the images from another input selected last while playing the audio from NET or BLUETOOTH input. After switching the input to NET or BLUETOOTH, play the images and audio. And then when you press MODE on the remote controller, the image is displayed in full-screen mode, and
the audio information (Mini Player) for NET or BLUETOOTH is displayed in the corner of the screen. You can set whether to always display this Mini Player on the screen.
- Each time the MODE button is pressed, the image display/non-display can be switched.
- This setting cannot be selected if "Impose OSD" is set to "Off".
- This function cannot be used when "OSD Language" is set to Chinese.
(European, Australian, Asian and Taiwanese models)
Screen Saver
Default Value: 3 minutes
Set the time to start the screen saver.
Select a value from "3 minutes", "5 minutes", "10 minutes" and "Off".
HDMI Input
You can change input assignment between the input selectors and HDMI IN
jacks.
Input name | Default Value |
BD/DVD | HDMI 1 |
GAME | HDMI 2 |
CBL/SAT | HDMI 3 |
STRM BOX | HDMI 4 |
PC | HDMI 5 |
AUX | HDMI 6 |
CD | --- |
TV | --- |
PHONO | --- |
"HDMI 1 (HDCP 2.3)" to "HDMI 6 (HDCP 2.3)":
Assign any HDMI IN jack to each of the input selectors. If you do not assign a jack, select "---". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.
Digital Audio Input
Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks. If you do not assign a jack, select "---".
Input name | Default Value |
BD/DVD | COAXIAL |
GAME | --- |
CBL/SAT | --- |
STRM BOX | --- |
PC | --- |
CD | --- |
TV | OPTICAL |
PHONO | --- |
- Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.
Analog Audio Input

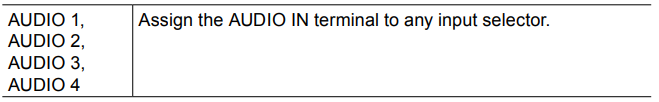

Change input assignment between the input selectors and AUDIO IN jacks. If you do not assign a jack, select "---".
Input name | Default Value |
BD/DVD | AUDIO 1 |
GAME | --- |
CBL/SAT | AUDIO 2 |
STRM BOX | AUDIO 3 |
PC | --- |
CD | AUDIO 4 |
TV | --- |
PHONO | PHONO |
