TX-NR6100 - Menu Operations
You can quickly adjust the settings you frequently use, such as tone adjustments, etc.

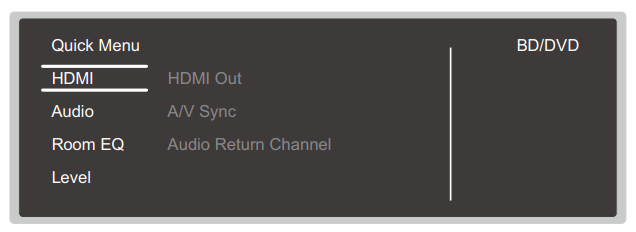

You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.
Select the item with the cursors ^/v of the remote controller, and press the ENTER button to confirm your selection.
Use the cursors to change the settings.
- To return to the previous screen, press
.
- To exit the settings, press Q.
HDMI
HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN", "SUB", and "MAIN+SUB".
A/V Sync: If the video is behind the audio, you can delay the audio to offset the gap. The setting can be set for each input.
- It cannot be set if the listening mode is Pure Audio or Direct.
Audio Return Channel: You can enjoy the sound of the HDMI-connected ARC-compatible TV through the speakers connected to the unit. Select "On" when listening to the audio of TV using the speakers of this unit. Select "Off" when the ARC function is not used.
Audio
Music Optimizer: Improve the quality of the compressed audio. Playback sound of lossy compressed files such as MP3 will be improved. The setting can be set for each input. This works in signals whose sampling frequencies are 48 kHz or less. The setting is not effective in the bitstream signals.
- It cannot be set if the listening mode is Pure Audio or Direct.
- This cannot be selected when either of the slots is selected with "Dirac Live".
Late Night: Enable small sounds to be easily heard in detail. It is useful when you need to reduce the volume while watching a movie late night.
- This function cannot be used in the following cases.
-When playing Dolby Digital Plus or Dolby TrueHD with "Loudness Management" set to "Off"
-When the input signal is DTS:X, and "Dialog Control" is not 0 dB
-When the input signal is Analog/DSD and the listening mode is Pure Audio or Direct
Stereo Assign: This function enables you to select a pair of speakers to output stereo sound. Apart from the front speakers (Front), you can select the Surround speakers (Surround), Surround Back speakers (Surround Back), Height 1 speakers (Height 1) and Height 2 speakers (Height 2).
- The listening mode switches to "Stereo" if the audio output destination is changed.
Zone B: Select a method of outputting audio to ZONE B from among "Off", "On (A+B)" and "On (B)".
- In the following cases, "Zone B" cannot be selected.
-When ZONE 2 is On
-When "2. Speaker" - "Configuration" - "Zone 2 Lineout" on the Setup menu is set to "Zone 2".
Digital Filter: You can switch the type of digital filter in the AUDIO DAC (digital analog converter). You can choose "Slow" (gives the sound a soft and fluid feel), "Sharp" (gives the sound more structure and firmer feel) or "Auto" (auto). The setting can be separately set to each input selector. This can be set when the sampling frequency is 44.1 kHz or more.
Room EQ
Dirac Live (*1): You can select the equalizers measured with Dirac Live from "Slot1" to "Slot3". When disabling the equalizer, select "Off".
- The Dirac Live measurement results are saved in "Slot1" to "Slot3", but you are able to register your own original sound quality with "Manual Adjust".
- This cannot be selected when measurements are made using "AccuEQ Room Calibration".
AccuEQ (*1)(*2): Enable or disable the equalizer function that corrects for sound distortion caused by the acoustic environment of the room.
On (All Ch): EQ that corrects according to the room acoustics acquired with the AccuEQ calibration is applied to all channels.
On (ex. L/R): The same EQ as "On (All Ch)" is applied to speakers other than the Front Speakers. EQ correction for the Front Speakers is turned off.
- The setting can be separately set to each input selector.
Manual Equalizer (*1)(*2): Select "Preset 1" to "Preset 3" configured in "2. Speaker" - "Equalizer Settings" on the Setup menu. When this is set to "Off", the same sound field setting is applied to all ranges.
Re-EQ, Re-EQ(THX) (*1)(*2): Adjusts the soundtrack with the enhanced high range so that it suits a home theater. The following listening modes can be used for Re-EQ:
Dolby Audio - DD, Dolby Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel, DTS,
DTS-ES, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Neural:X, DTS Express and DSD In Re-EQ(THX), the following listening modes can be used: THX Cinema and THX Select Cinema. EQ for Standing Wave (*1)(*2): Setting this "On" will control the effect of the standing wave generated by the sound wave reflected by wall or similar interfering with the original sound wave.
(*1) It cannot be set if the listening mode is Pure Audio or Direct.
(*2) This function cannot be used if Dirac Live ( →p78) is being used. Furthermore, there is no effect even if it can be selected.
Level
Front: Adjust the speaker level of the front speakers while listening to the sound.
Center: Adjust the speaker level of the center speaker while listening to the sound.
Subwoofer: Adjust the speaker level of the subwoofer while listening to the sound.
- If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses.
