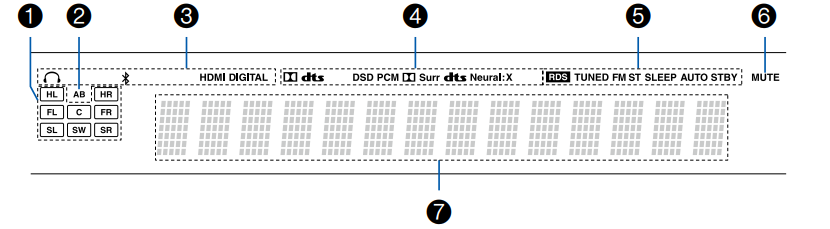

TX-SR393- Display

1. Speaker/Channel display: Displays the output channel that corresponds to the selected listening mode.
2. Displays the audio output destination.
    A: Outputs audio only to the main room (ZONE A).
    B: Outputs audio only to the separate room (ZONE B).
    AB: Outputs audio to both the main room (ZONE A) and separate room (ZONE B).
3. Lights in the following conditions.
: Headphones are connected.

: Connected by BLUETOOTH.

HDMI: HDMI signals are input and the HDMI input is selected.
DIGITAL: Digital signals are input and the digital input is selected.
4. Lights according to the type of input digital audio signal and the listening mode.
5. Lights in the following conditions.
    RDS (European, Australian and Asian models): Receiving RDS broadcasting.
    TUNED: Receiving AM/FM radio.
    FM ST: Receiving FM stereo.
    SLEEP: Sleep timer is set. ( p75)
    AUTO STBY: Auto Standby is set. ( p75)
6. Blinks when muting is on.
7. Displays various information of the input signals.
