TX-SR393- Zone B Playback

While performing playback in the main room (ZONE A), you can enjoy the audio of the same source in the separate room (ZONE B) at the same time.

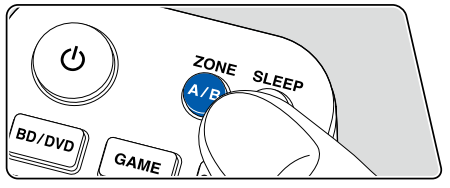

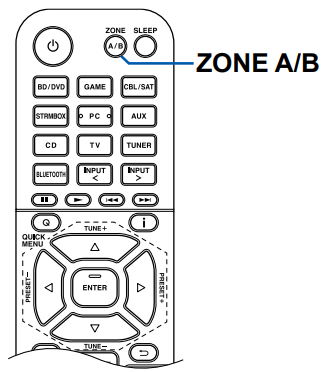

1. Press ZONE A/B to select an audio output destination.
    • ZONE A: Outputs audio only to the main room (ZONE A). "A" on the display of the main unit lights             up.
   • ZONE B: Outputs audio only to the separate room (ZONE B). "B" on the display of the main unit                 lights  up.

    • ZONE A+B: Outputs audio to both the main room (ZONE A) and separate room (ZONE B). "A" and            "B" on the display of the main unit light up.
2. Start play on the AV component.
3. If the unit is connected to the pre-main amplifier in the separate room, adjust the volume on the pre-        main amplifier.

If "ZONE A+B" is selected as an audio output destination, you can select only the "Stereo" listening mode for the main room (ZONE A) when using the 2.1ch speaker layout. When using a speaker layout of 3.1ch or more, you can select only the "AllCh Stereo" listening mode.
