WebSetup-Get start with Web Setup

Web Setup is an application for configuring and managing products. To start Web Setup, please follow the steps below.

1. Connect your PC or smart device terminal (hereinafter this is called "device") to the LAN (no internet required)

2. Connect your device to your LAN (no internet required)

3. Check the IP address of the device.

    You can confirm it by following ways,

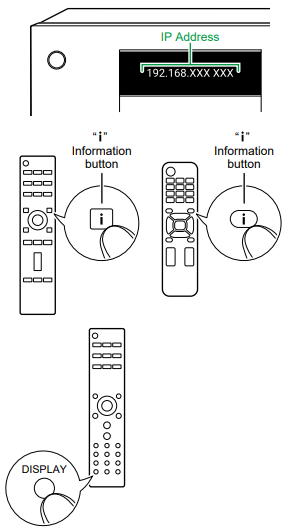

- Press the Information button or the Display button repeatedly. (Diagram A)

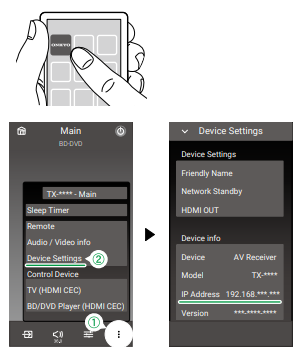

- Using the "Onkyo Controller" app. (Diagram B)

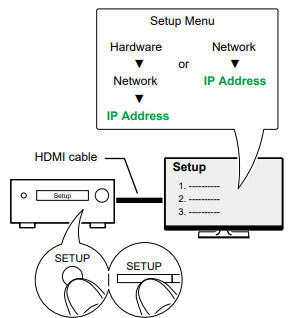

- Open Setup and confirm Network IP Address. (Diagram C)

(Diagram A)

(Diagram B)

(Diagram C)

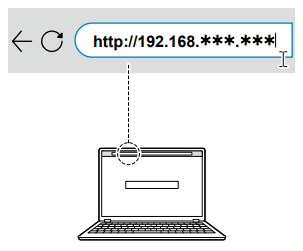

4. Open a browser on your device and enter the URL http://(IP Address of device). (* 1)

5. When the authentication screen for login appears ciuser, enter the user name = ciuser and password = ciuser. (* 2)
