Web Setup-Others

Loading screen

Web Setup needs to load the device settings when the page loads. This is screenshot of loading screen.

Alert

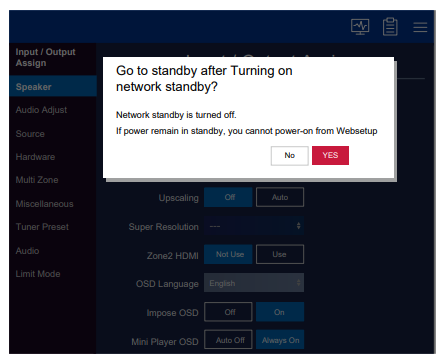

Alert dialog is displayed for warning of operations. The following warning screen is displayed when attempting to enter standby mode with the Network Standby setting set to Off.

Alert screen has buttons to confirm to continue or cancel the operation.

Lock screen

The screen of Web Setup is locked in the following situations.

・ Main zone is in standby

・ Miscellaneous Lock Setup = Locked

・ After applying network settings

・ After running Factory Reset

・ After running Recall

・ After uploading settings

・ Initial Setup/Speaker measurement(e.g. AccuEQ)

This is screenshot of the lock screen. If unlockable, an unlock button will appear. Web Setup is redrawn and available when screen is unlocked.

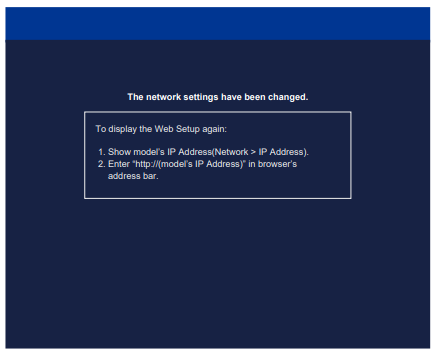

If unlocking is not possible, a screen prompting you to reload manually will be displayed. If the URL changes, such as when the network is changed, a guide to reload page will be displayed.
