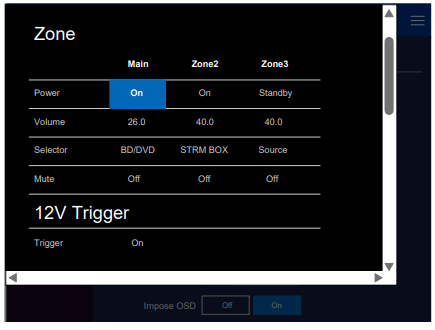

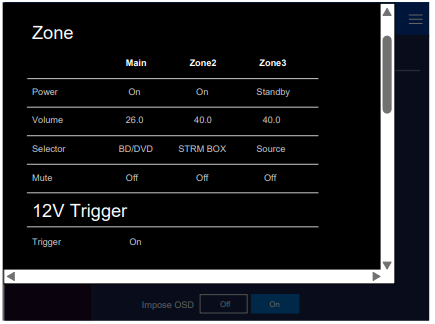

Web Setup Status Dialog

This is a screenshot of the status dialog.

Only power can be controlled.

Power status is toggled when mouse hover and click.

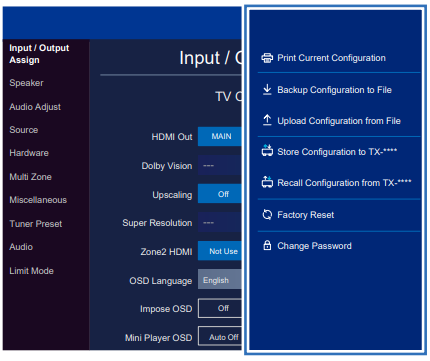

additional menu sidebar

This is a screenshot of the additional menu sidebar.

menu	feature
Print Current configuration	Print Current configuration pg 4
Backup configuration to File	Backup configuration pg 4
Upload configuration from File	Upload Configurations pf 4
Store configuration to (Device)	Same feature as Store of the device. pg 4
Recall configuration from (Device)	Same feature as Recall of the device. pg 4
Factory Reset	Same feature as Factory Reset of the device pg 4
Change Password(*2)	Change Login password pg 4

(*2)AV Receiver model only.
