DX-C390 - Front Panel and Display


  1. STANDBY/ON button-This button is used to set the DX-C390 to On or Standby.
  2. STANDBY indicator-This indicator lights up when the DX-C390 is in Standby mode.
  3. REPEAT button-This button is used with the Repeat function.
  4. RANDOM button-This button is used with the Random function.
  5. DIMMER button-This button is used to adjust the display brightness.
  6. DISPLAY button-This button is used to display elapsed, remaining, and total time information about the current disc or track and various information about MP3 tracks.
  7. Remote control sensor-This sensor receives control signals from the remote controller.
  8. mceclip1.png button-This button is used to open and close the disc tray.
  9. DISC SELECT buttons-These buttons are used to select discs. Playback starts automatically when a disc is selected with one of these buttons.
  10. PLAY/PAUSE mceclip2.png button-This button is used to start and pause playback.
  11. STOP button-This button is used to stop playback.
  12. mceclip3.png & FOLDER mceclip4.png buttons-These buttons are used to select the previous and
    next tracks and to navigate folders on MP3 discs.
  13. mceclip5.png & FOLDER mceclip6.png buttons-These buttons are used for fast reverse and fast forward and to navigate folders on MP3 discs.
  14. DISC SKIP button-This button is used to turn the disc tray when loading or removing discs and to select discs for playback.

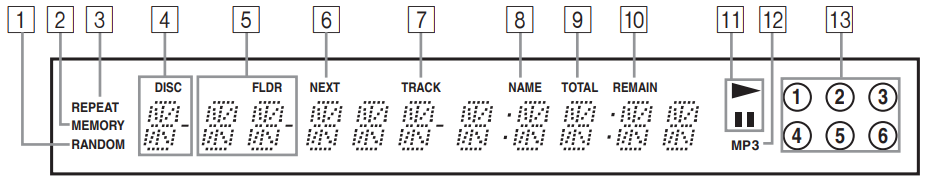

Display


  1. RANDOM indicator
  2. MEMORY indicator
  3. REPEAT indicator
  4. DISC indicator-The number of the current disc appears here.
  5. FLDR (FOLDER) indicator-While stopped, the total number of folders on the current MP3 disc are displayed. During playback, the number of the current folder is displayed.
  6. NEXT indicator-This indicator appears when using the Next Selection function.
  7. TRACK indicator-While stopped, the total number of tracks on the current disc are displayed.  During playback, the number of the current track is displayed.
  8. NAME indicator-This indicator appears when the current disc is an MP3 disc and a name (disc, folder, track) is being displayed.
  9. TOTAL indicator-This indicator appears when the total remain time is displayed.
  10. REMAIN indicator
  11. Play  / Pause  indicator
  12. MP3 indicator
  13. Disc indicators 1–6
