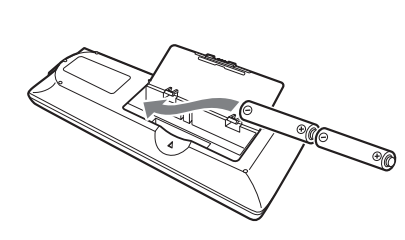

Installing Batteries

Notes:

• The batteries should last for about six months, although this will vary with usage.
• If the remote controller doesn’t work reliably, try replacing the batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.
• Flat batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Using the Remote Control

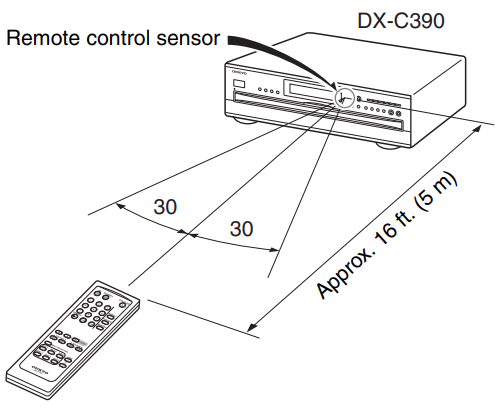

To use the remote controller, point it at the DX-C390’s remote control sensor, as shown.

Notes:

• The remote controller may not work reliably if the DX-C390 is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing the DX-C390.
• If another remote controller of the same type is used in the same room, or the DX-C390 is installed close to equipment that uses infrared rays, the remote controller may not work reliably.
• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.
• The remote controller may not work reliably if the DX-C390 is installed in a rack behind colored glass doors. Keep this in mind when installing the DX-C390.
• The remote controller will not work if there’s an obstacle between it and the DX-C390’s remote control sensor.

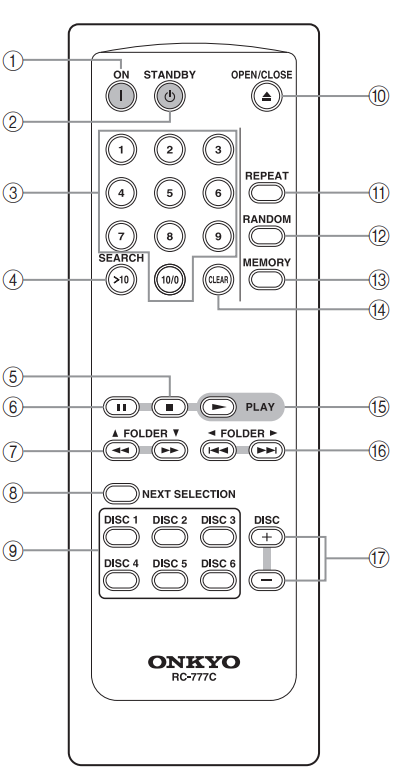

Remote Layout

1. ON button-This button is used to turn on the DX-C390.
2. STANDBY button-This button is used to set the DX-C390 to Standby.
3. Number buttons-These buttons are used to enter track and MP3 folder numbers.
4. SEARCH (>10) button-This button is used to enter track numbers above 10 and to select MP3 folders.
5. STOP button-This button is used to stop playback.
6. PAUSE button-This button is used to pause playback.
7. & FOLDER buttons-These buttons are used for fast reverse and fast forward, and to navigate folders on MP3 discs.
8. NEXT SELECTION button-This button is used with the Next Selection function for cuing up the next track.
9. Disc Select [DISC 1]–[DISC 6] buttons-These buttons are used to select discs. Playback starts automatically when a disc is selected with one of these buttons.
10. OPEN/CLOSE button-This button is used to open and close the disc tray.
11. REPEAT button-This button is used with the Repeat function.
12. RANDOM button-This button is used with the Random function.
13. MEMORY button-This button is used with the Memory function.
14. CLEAR button-This button is used to cancel various functions.
15. PLAY [] button-This button is used to start playback.
16. & FOLDER buttons-These buttons are used to select the previous and next tracks, and to navigate folders on MP3 discs.
17. DISC [+] & [–] buttons-These buttons are used to select discs.
