DX-C390 - RI Connections

With RI (Remote Interactive) you can control the DX-C390 together with your other RI-compatible Onkyo AV components. With some Onkyo AV receivers you can use one remote controller to control all your Onkyo components and use the following special RI functions:

• Auto Power On

  If your DX-C390 is connected to an RI-compatible Onkyo AV receiver, when you turn on the DX-C390, the AV receiver will turn on and select the DX-C390 as the input source.


• Direct Change

  If your DX-C390 is connected to an RI-compatible Onkyo AV receiver, when you start playback on the DX-C390, the AV receiver will select the DX-C390 as the input source.


• Auto Power Off

  When you set an RI-compatible Onkyo AV receiver to Standby, all other AV components connected via RI enter Standby as well.


• Dimmer
  When you dim the display brightness on an RI-compatible Onkyo AV component, the displays on all other AV components connected via RI are dimmed as well.

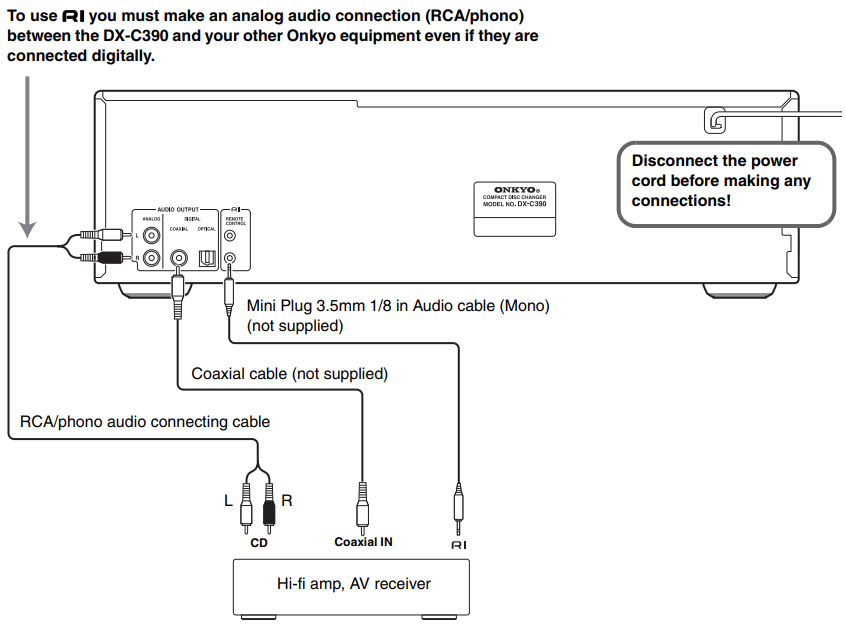

To use the RI functions, you need to connect one of the DX-C390’s RI connectors to an RI connector on another AV component in your system.

Notes:

• To use RI you must make an analog RCA/phono connection between your DX-C390 and Onkyo AV receiver even if they are connected digitally.
• The DX-C390 has two RI connectors. You can connect either one to your Onkyo AV receiver. The other connector is for connecting additional RI-compatible components.
• Connect the DX-C390’s RI connector to only Onkyo AV components. Connecting to other manufacturer’s AV components may cause them to malfunction.
• Some Onkyo RI-compatible AV components may not support the special functions described here.
