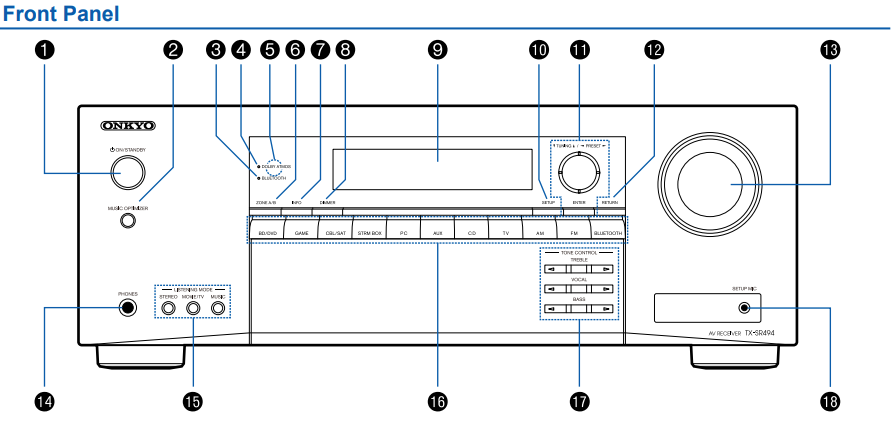

MUSIC OPTIMIZER button: Turns on/off the MUSIC OPTIMIZER function that improves the quality of the compressed audio.
BLUETOOTH indicator: Lights up when this unit and a BLUETOOTH-enabled device are connected.
DOLBY ATMOS indicator: Lights up when Dolby Atmos signals are reproduced in appropriate listening mode.
Remote control sensor: Receives signals from the remote controller.
The reception range of the remote controller is within a distance of approx.
16´/5 m, and an angle of 20° in vertical direction and 30° to right and left.
ZONE A/B button: Selects an audio output destination from among "ZONE A", "ZONE B" and "ZONE A+B".
INFO button: Switches the information on the display and is used to operate RDS.
DIMMER button: Switches the brightness of the display with three levels. It cannot be turned off completely.
Display
SETUP button: You can display advanced setting items on the TV and the display to have a more enjoyable experience with this unit.
Cursor buttons and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. When using TUNER, use them to tune in to stations.
RETURN button: Returns the display to the previous state while setting.
MASTER VOLUME
PHONES jack: Connect headphones with a standard plug (ø1/4"/6.3 mm).
LISTENING MODE button: Switches the listening mode by pressing "STEREO", "MOVIE/TV" and "MUSIC" repeatedly.
Input selector buttons: Switches the input to be played.
TONE CONTROL button: Adjusts the sound quality.
SETUP MIC jack: Connect the supplied speaker setup microphone.
