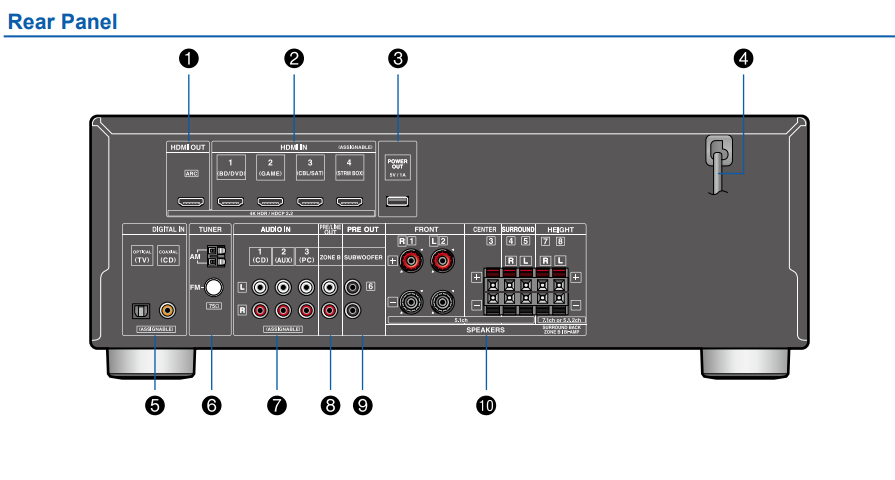

HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a TV.
HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV component.
POWER OUT port: The power (5 V/1 A) can be supplied to a streaming media player, etc. using a USB cable. The playback function is not supported.
Power cord
DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.
TUNER AM/FM terminal: Connect the supplied antennas.
AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.
ZONE B PRE/LINE OUT jacks: Output audio signals with an analog audio cable connected to a pre-main amplifier or a power amplifier in a separate room (ZONE B).
SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.
SPEAKERS terminals: Connect speakers with speaker cables. (FRONT L/R terminals of North American models support banana plugs.)
