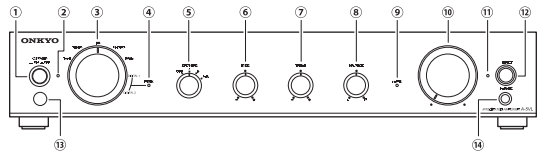

A-5VL Front Panel Diagram

1. Power Button-This button is used to turn the unit on and off
2. Power Indicator-Illuminates when the amp is on
3. Input Selector Control-This control is used to select the playback device
4. Locked Indicator-Illuminates when there is audio signal input from
   the device connected to DIGITAL1 (COAXIAL)or DIGITAL2 (OPTICAL)
5. Speakers Control-This control sets the speaker output to A, B, A+B,
   or OFF
6. Bass Control-This control is used to adjust the bass volume
7. Treble Control-This control is used to adjust the treble volume
8. Balance Control-This control is used to adjust the left-right audio
   balance
9. Muting Indicator-Illuminates when the volume is muted
10. Volume Control-This control adjusts the volume
11. Direct Indicator-Illuminates when there is direct output
12. Direct Button-This button selects whether to output the audio signal input directly, or to output it through the amp, adjusting the bass, treble and balance
13. Remote Control Sensor
14. Headphone Jack-Stereo headphones with a standard plug can be
    plugged into this jack
